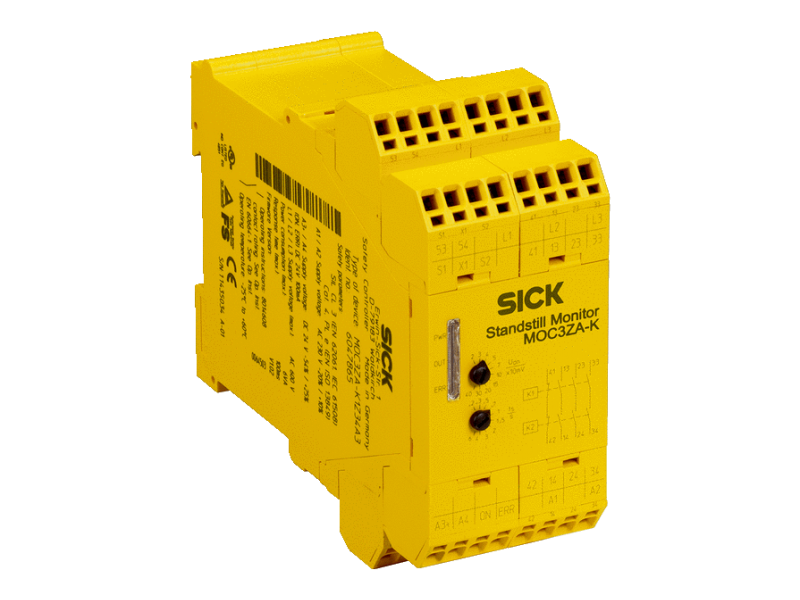

Standstill Monitor

Standstill Monitor

描述

• Standstill monitoring by means of residual voltage measurement
• 3 normally open and 1 normally closed positively guided safety contacts
• 2 application diagnostic outputs for semiconductors
• 1 application diagnostic output normally open
• PL e (EN ISO 13849), SIL3 (IEC 61508), SILCL 3 (EN 62061)
• Maximum motor supply voltage 690 V
• Adjustable voltage threshold and standstill period

• Quick mounting and installation thanks to the lack of additional wiring requirements
• Simple commissioning with a screwdriver
• Easy to retrofit as the subsequent mounting of sensors is not necessary

(Source: SICK)
